Devices

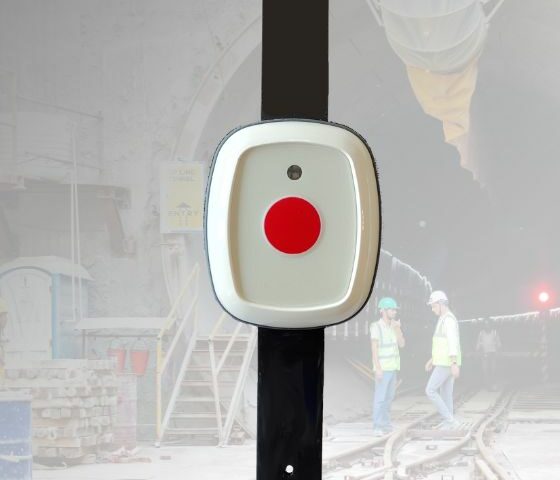

• Wearable tag for people tracking
• bleenc® protocol with bidirectional communication
• Configurable encryption and device authentication
• Programmable motion detection
• Safety functions: panic button, man-down detection
• Alarm button (optional: vibration, buzzer)
• IP65 case with silicone wristband
• Replaceable CR2477 lithium coin battery

Healthcare: staff tracking, staff duress
Senior care: resident wandering, emergency call, caregiver alert
Industry: lone-workers, operator presence and safety monitoring, man-down detection, alerts in dangerous areas (geofencing)
Building sites: lone-workers, safety monitoring

Based on Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: yes
Type: CR2477 (3V, lithium, typical capacity 1000 mAh @ 25°C)
Operating life: 3 years (broadcast at 200msec); 10 years (broadcast at 1000msec)

Sensors: alarm button; 3-axis MEMS linear accelerometer
Interfaces: 2 LEDs (yellow, red), buzzer, vibration
Size: 55 x 46 x 17 mm (plastic case only)
Weight: 45 gr
Protection: IP65
Flammability: UL 94 HB
Operating temperature: -20°C to +60°C

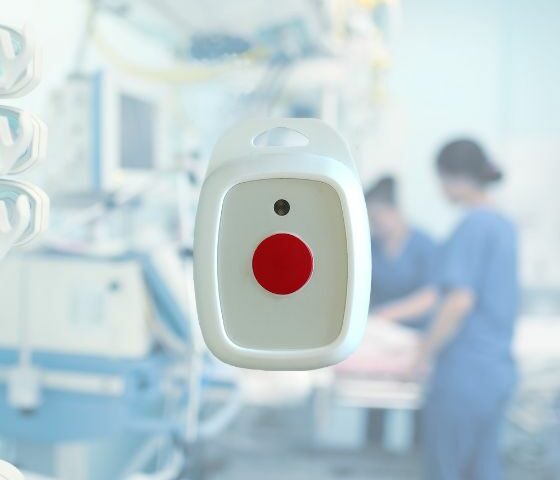

• Wearable tag for staff tracking
• bleenc® protocol with bidirectional communication
• Configurable encryption and device authentication
• Programmable motion and man-down detection
• Safety functions: panic button, man-down detection
• Alarm button (optional: vibration, buzzer)
• Eyelet for lanyard or clip
• Replaceable CR2477 lithium coin battery

Healthcare: staff tracking, nurce call, staff duress
Senior care: resident wandering, emergency call, caregiver alert
Industry: operator presence and safety monitoring, man-down detection, alerts in dangerous areas (geofencing)

Based on Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: yes
Type: CR2477 (3V, lithium, typical capacity 1000 mAh @ 25°C)
Operating life: 3 years (broadcast at 200msec); 10 years (broadcast at 1000msec)

Sensors: alarm button; 3-axis MEMS linear accelerometer
Interfaces: 2 LEDs (yellow, red), optional buzzer and vibration.
Size: 64 x 45 x 16 mm (including flange with eyelet)
Weight: 23 gr
Protection: –
Flammability: UL 94 HB
Operating temperature: -20°C to +60°C

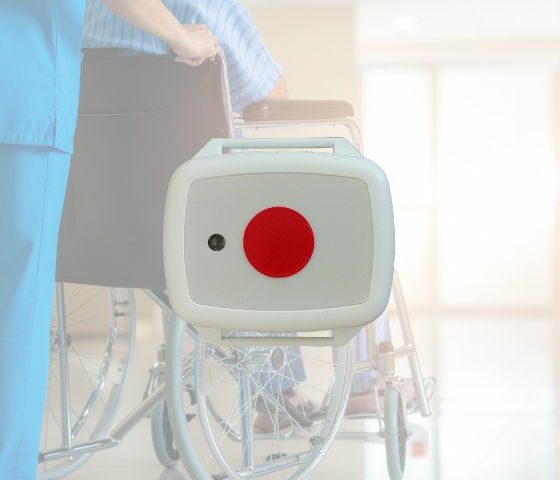

• Wearable tag for people tracking
• bleenc® protocol with bidirectional communication
• Configurable encryption and device authentication
• Programmable motion detection
• Safety functions: panic button, man-down detection
• Alarm button (optional: vibration, buzzer)
• Flanges for wriststrap
• Replaceable CR2477 lithium coin battery

Healthcare: staff tracking, nurce call, staff duress
Senior care: resident wandering, emergency call, caregiver alert
Industry: operator presence and safety monitoring, man-down detection, alerts in dangerous areas (geofencing)

Based on Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: yes
Type: CR2477 (3V, lithium, typical capacity 1000 mAh @ 25°C)
Operating life: 3 years (broadcast at 200msec); 10 years (broadcast at 1000msec)

Sensors: alarm button; 3-axis MEMS linear accelerometer
Interfaces: 2 LEDs (yellow, red), optional buzzer and vibration
Size: 52 x 49 x 15.5 mm (including flanges for wristrstrap)
Weight: 27.5 gr
Protection: IP65
Flammability: UL 94 HB
Operating temperature: -20°C to +60°C

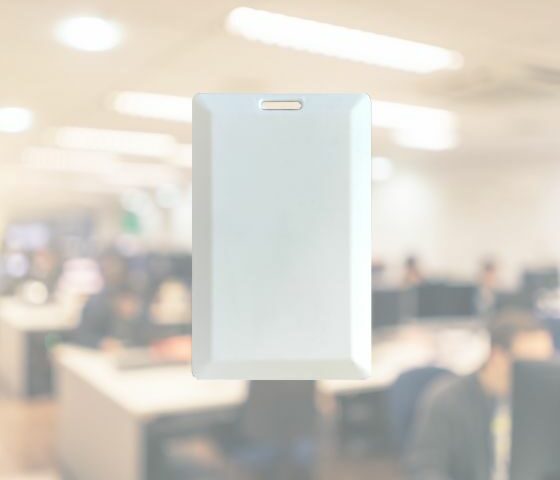

• Wearable tag for people tracking
• bleenc® protocol with bidirectional communication
• Configurable encryption and device authentication
• ​Programmable motion detection
• Safety functions: panic button, man-down detection
• Call button, 2x LEDs
• Compact and lightweight smart-card form factor
• Powered by non replaceable lithium battery

Offices: visitors tracking, access/presence control, evacuation management, workstations occupancy
Healthcare: staff tracking, nurse safety

Based on Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: no
Type: CP224147 (3V, lithium, typical capacity 800 mAh @ 25°C)
Operating life: 3 years (broadcast at 200msec); 10 years (broadcast at 1000msec)

Sensors: call button; 3-axis MEMS linear accelerometer
Interfaces: 2 LEDs (yellow, green)
Size: 85 x 56 x 4.5 mm
Weight: 15 gr
Protection: IP67 / NEMA6
Flammability: UL 94 HB
Operating temperature: -20°C to +60°C

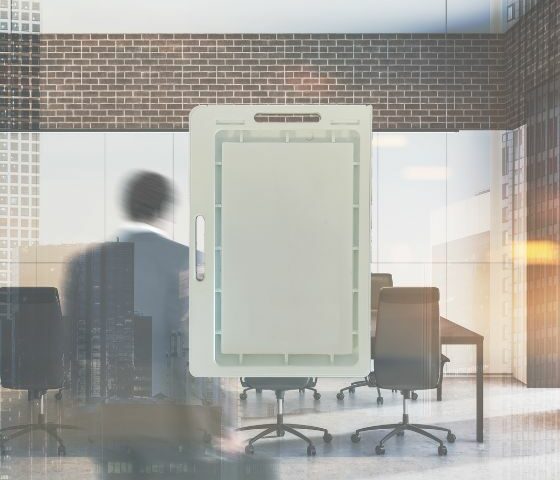

• Wearable tag for people tracking
• bleenc® protocol with bidirectional communication
• Configurable encryption and device authentication
• Programmable motion detection
• Safety functions: panic button, man-down detection
• Call button, 2x LEDs
• Holder for ISO/IEC 7810 cards, with IP67 rating
• Powered by non-replaceable lithium battery

Offices: visitors tracking, access/presence control, evacuation management, workstations occupancy
Healthcare: staff tracking, nurse safety

Based on Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: no
Type: CP224147 (3V, lithium, typical capacity 800 mAh @ 25°C)
Operating life: 3 years (broadcast at 200msec); 10 years (broadcast at 1000msec)

Sensors: call button; 3-axis MEMS linear accelerometer
Interfaces: 2 LEDs (yellow, green)
Size: 95 x 64 x 7 mm
Weight: 24 gr
Protection: IP67 / NEMA6
Flammability: UL 94 HB
Operating temperature: -20°C to +60°C

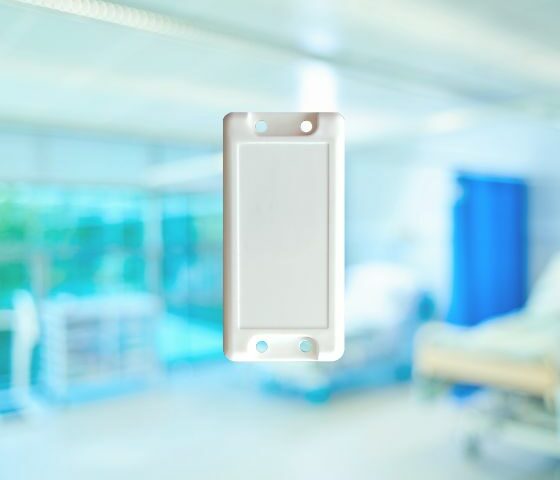

• Asset tag for medical equipment
• bleenc® protocol with bidirectional communication
• Configurable encryption and device authentication
• Programmable motion detection
• 2 LEDs for visual identification (optional)
• 4 holes for flexible fastening options
• Replaceable 2x CR2032 lithium coin batteries

Healthcare: medical equipment tracking, bed management
Senior care: wheelchair management
Manufacturing: box tracking and localization, tools tracking

Based on Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: yes
Type: 2x CR2032 (3V, lithium, total capacity 440 mAh @ 25°C)
Operating life: 8 months (broadcast at 200msec); 4 years (broadcast at 1000msec)

Sensors: 3-axis MEMS linear accelerometer
Interfaces: optional 2 LEDs (yellow, red)
Size: 67 x 33 x 9 mm
Weight: 18 gr
Protection: IP54
Flammability: UL 94 HB
Operating temperature: -20°C to +60°C

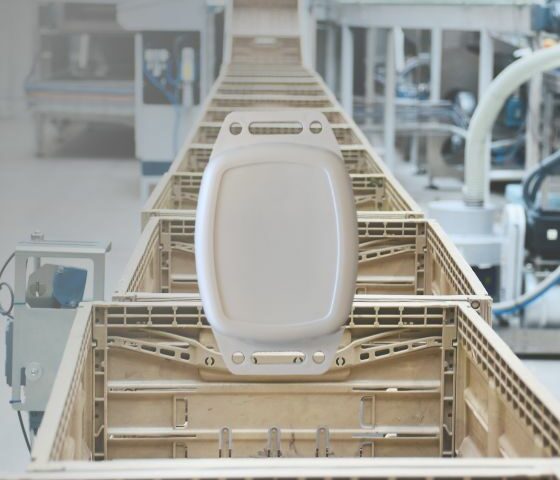

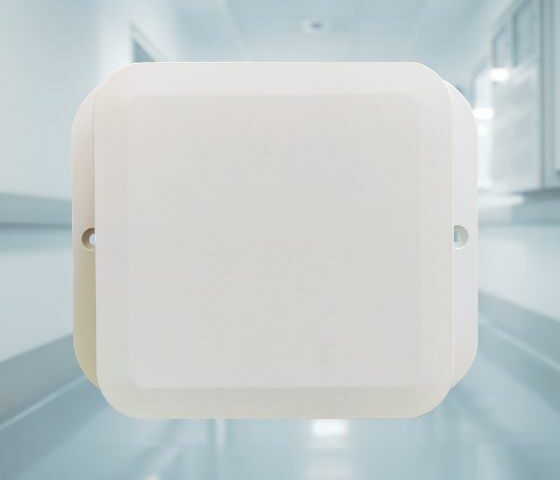

• Tag for asset tracking and localization
• bleenc® protocol with bidirectional communication
• Configurable encryption and device authentication
• Programmable motion detection
• 2x LEDs
• IP67 enclosure for outoor and industrial applications
• Flanges for flexible fastening options
• Replaceable CR2477 lithium coin battery

Manufacturing: boxes and containers tracking and localization, tools tracking
Healthcare: medical equipment tracking, bed management
Senior care: wheelchair management

Based on Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: yes
Type: CR2477 (3V, lithium, typical capacity 1000 mAh @ 25°C)
Operating life: 3 years (broadcast at 200msec); 10 years (broadcast at 1000msec)

Sensors: 3-axis MEMS linear accelerometer
Interfaces: 2 LEDs (yellow, red)
Size: 77 x 46 x 16 mm (including flanges)
Weight: 27 gr
Protection: IP67 / NEMA6
Flammability: UL 94 HB
Operating temperature: -20°C to +60°C

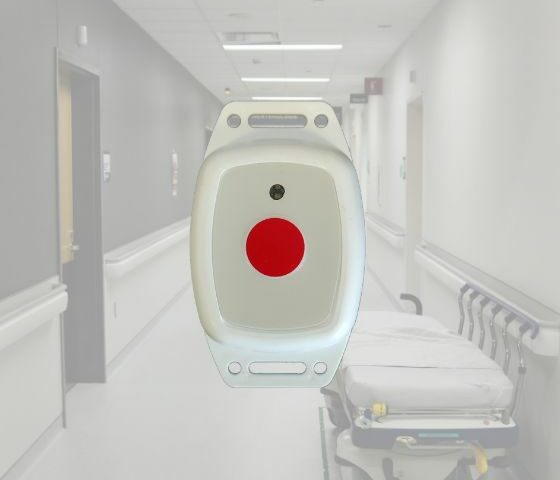

• Tag with call button for asset identification
• bleenc® protocol with bidirectional communication
• Configurable encryption and device authentication
• Programmable motion detection
• Call button and 2x LEDs
• IP67 enclosure with flanges for flexible fastening
• Replaceable CR2477 lithium coin battery

Industry: asset tracking, WIP monitoring, assistance call
Intra-logistics: pick-to-light
Healthcare: equipment maintenance management, emergency call

Based on Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: yes
Type: CR2477 (3V, lithium, typical capacity 1000 mAh @ 25°C)
Operating life: 3 years (broadcast at 200msec); 10 years (broadcast at 1000msec)

Sensors: call button; 3-axis MEMS linear accelerometer
Interfaces: 2 LEDs (yellow, red)
Size: 77 x 46 x 16 mm (including flanges)
Weight: 27 gr
Protection: IP67 / NEMA6
Flammability: UL 94 HB
Operating temperature: -20°C to +60°C

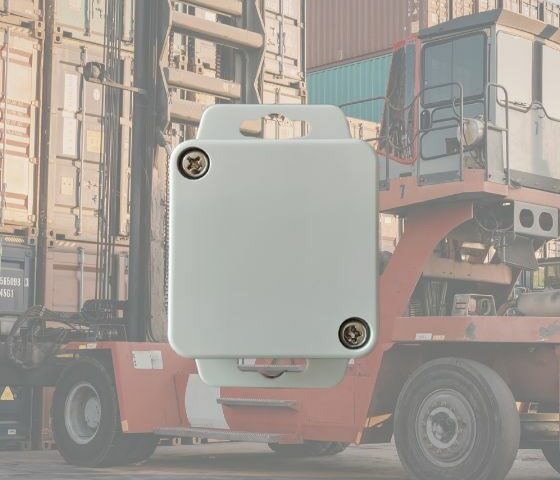

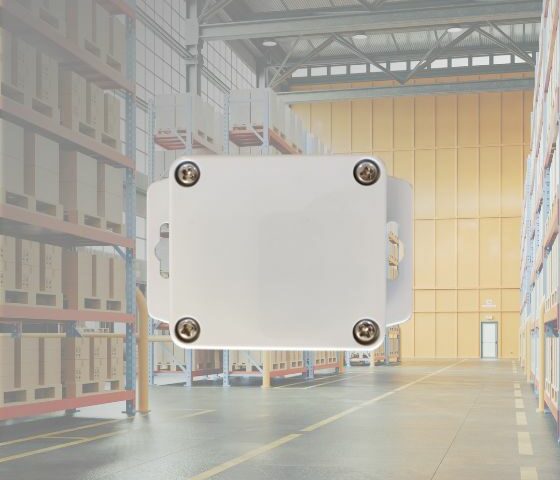

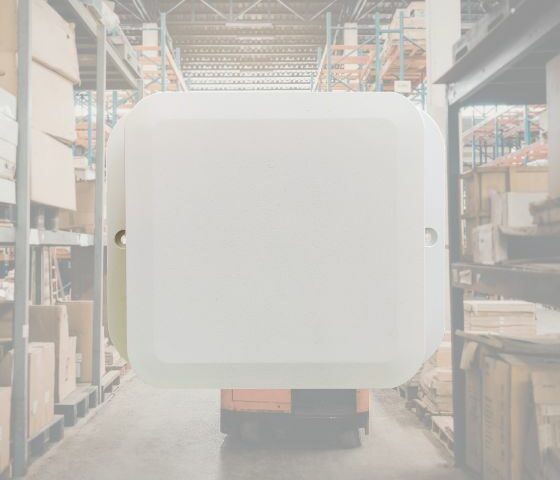

• Tag for asset tracking and localization
• bleenc® protocol with bidirectional communication
• Configurable encryption and device authentication
• Programmable motion detection
• IP67 enclosure for outoor and industrial applications
• Flanges for flexible fastening options
• Replaceable CR123A lithium battery

Industry: containers and trolleys localization and tracking
Building sites: tools and equipment tracking

Based on Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: yes
Type: CR123A(3V, lithium, typical capacity 1500 mAh @ 25°C)
Operating life: 4 years (broadcast at 200msec); 12 years (broadcast at 1000msec)

Sensors: 3-axis MEMS linear accelerometer
Interfaces: –
Size: 50 x 80 x 35 mm (version with flanges)
Weight: 67gr (version with flanges)
Protection: IP67 / NEMA6
Flammability: UL 94 HB
Operating temperature: -30°C to +70°C

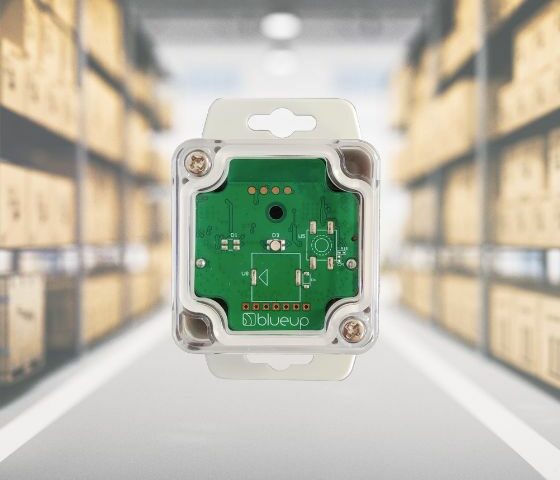

• Tag for asset tracking and localization
• bleenc® protocol with bidirectional communication
• Configurable encryption and device authentication
• Programmable motion detection
• High visibility RBG LED for aseet identification
• IP67 enclosure for outoor and industrial applications
• Replaceable CR123A lithium battery

Industry: containers and trolleys localization and tracking, WIP monitoring
Intra-logistics: find-by-light

Based on Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: yes
Type: CR123A(3V, lithium, typical capacity 1500 mAh @ 25°C)
Operating life: 4 years (broadcast at 200msec); 12 years (broadcast at 1000msec)

Sensors: 3-axis MEMS linear accelerometer
Interfaces: RGB LED
Size: 50 x 80 x 35 mm (version with flanges)
Weight: 67gr (version with flanges)
Protection: IP67 / NEMA6
Flammability: UL 94 HB
Operating temperature: -30°C to +70°C

• Location beacon for room detection
• bleenc® protocol with bidirectional communication
• Configurable beacon advertising
• Circularly-polarized planar patch antenna
• Two flanges for wall/ceiling installation
• Optional plastic holder for fast battery replacement
• Two versions: battery-powered and USB-powered

Healthcare: room localization
Senior care: room localization
Offices: room localization, desk occupation
Manufacturing: workstation localization

Based on Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: planar CP printed antenna

Power supply type: primary battery
Replaceable: yes
Type: 4x AA (1.5V, alkaline, total capacity 5600 mAh @ 25°C)
Operating life: 6 years (default settings)

Size: 124 x 100 x 35 mm (including flanges)
Weight: 200 gr
Protection: –
Flammability: UL 94 HB
Operating temperature: -20°C to +60°C

• Location beacon for zone detection
• bleenc® protocol with bidirectional communication
• Configurable encryption and device authentication
• Configurable beacon advertising
• IP67 enclosure for outdoor and industrial applications
• Certified for medical, automotive and railway use
• Replaceable 3.6V lithium battery-pack

Industry: workstation localization
Building sites: proximity localization
Intralogistic: shelf localization

Based on Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: yes
Type: 2x AA (3.6V, Lithium Thionyl Chloride LiSoCl2, 5200 mAh typ. capacity @ 25°C)
Operating life: 6 years (default settings)

Sensors: 3-axis MEMS linear accelerometer
Interfaces: –
Size: 94 x 58 x 35 mm (enclosure with flanges)
Weight: 108 gr (enclosure with flanges)
Protection: IP67 / NEMA6
Flammability: UL 94 HB (UL94-V0 on demand)
Operating temperature: -40°C to +75°C

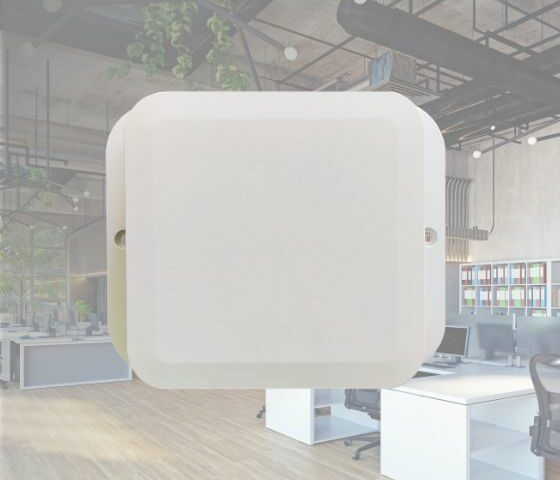

• Location gateway for bleenc® RTLS
• Bidirectional communication with bleenc® tags
• Configurable scanning of Bluetooth devices
• Connectivity: Ethernet (PoE, 802.3af), WiFi (802.11 b/g/n), WiFi Mesh
• BLE directive antenna for zonal detection
• Long-range communication
• Multiple options for power-supply

Pinpoint localization
Zone localization
Long-range communication
Transit detection

Platform: Espressif Systems® ESP32S3WROOM-1
Connectivity: Ethernet (PoE IEEE 802.3af), WiFi (IEEE 802.11 b/g/n)
Radio: Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: 20 dBm (max, configurable)
RX sensitivity: -109 dBm
Antenna: planar circularly-polarized array antenna

USB: 5Vdc​ (connector: USB-C)
PoE: 802.3af, 44 – 57Vdc, PoE Class 0 (connector: RJ45)
VDC: 6-30Vdc (connector: 2-poles)

Size: 155 x 125 x 40 mm (including flanges)
Weight: 300 gr
Protection: IP40
Wall mounting: 2x Ø3.5mm screws (not included) for lateral flanges
Operating temperature: -20°C to +65°C

• Location gateway for bleenc® RTLS
• Bidirectional communication with bleenc® tags
• Configurable scanning of Bluetooth devices
• PoE network connectivity (IEEE 802.3af)
• BLE omnidirectional antenna for proximity detection
• PoE or USB-C power-supply

Zone localization
Omnidirectional communication

Platform: Espressif Systems® ESP32S3WROOM-1
Connectivity: Ethernet (PoE IEEE 802.3af)
Radio: Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: 4dBm (max.)
RX sensitivity: -96 dBm
Antenna: Planar Inverted F-antenna

USB: 5Vdc​ (connector: USB-C)
PoE: 802.3af, 44 – 57Vdc, PoE Class 0 (connector: RJ45)

Size: 124 x 100 x 35 mm (including flanges)
Weight: 200 gr
Protection: IP40
Wall mounting: 2x Ø3.5mm screws (not included) for lateral flanges
Operating temperature: -20°C to +65°C

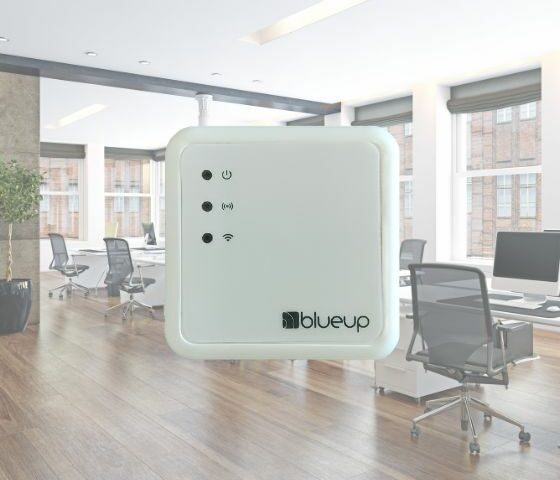

• 2.4GHz gateway for bleenc protocol
• Bidirectional communication with bleenc® tags
• Configurable scanning of Bluetooth devices
• Interfaced with bleenc software platform
• WiFi network connectivity (IEEE 802.11 b/g/n)
• Compact light-weight design
• Dual power-supply: USB-C or internal connector

Zone localization
Omnidirectional communication

Platform: Espressif Systems® ESP32S3WROOM-1
Connectivity: WiFi (IEEE 802.11 b/g/n)
Radio: Nordic Semiconductors nRF52832 Bluetooth® 5 SoC
Frequency band: 2.402 to 2.480 GHz
TX power: 4dBm (max.)
RX sensitivity: -96 dBm
Antenna: Planar Inverted F-antenna

USB: 5Vdc​ (connector: USB-C)
VDC: 6-30Vdc (connector: internal 2-port pluggable connector)

Size: 74 x 74 x 25.5 mm
Weight: 50 gr
Protection: IP40
Mounting options: dual-adhesive or screws
Operating temperature: -20°C to +65°C

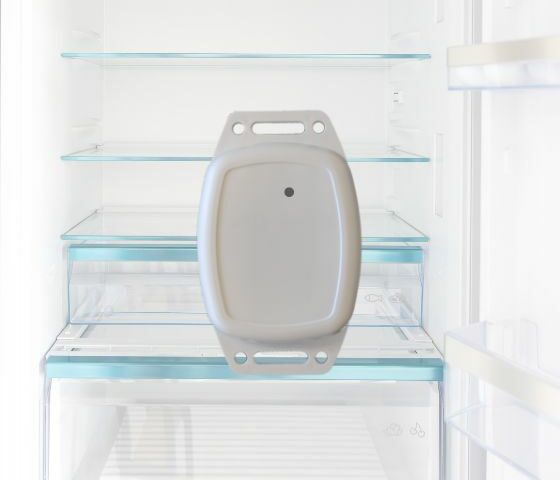

• Suitable for outdoor and industrial applications
• Based on Nordic nRF52832
• Temperature and Humidity sensors
• 2x LEDs for signaling
• Enclosure with flanges for flexible fastening
• Powered by replaceable CR2477 lithium battery

Healthcare: temperature and humidity room monitoring, freeze monitoring
Offices: monitoring of environmental conditions of rooms/buildings

Based on Nordic nRF52832 SoC (MCU and radio transceiver)
Frequency band: 2.402 to 2.480 GHz
(according to Bluetooth 4.0 specifications)
TX power: -40, -20 to 4 dBm (with 4 dB steps). Programmable for each slot.
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: yes
Type: CR2477 (3V, lithium, typical capacity 1000 mAh @ 25°C)
Operating life: 3 years (broadcast at 200msec); 10 years (broadcast at 1000msec)

Sensors: 3-axis MEMS linear accelerometer, temperature, humidity
Interfaces:2x LEDs (yellow, red)
Size: 77 x 46 x 16 mm (including flanges)
Weight: 27 gr
Protection: –
Flammability: UL 94 HB
Operating temperature: -20°C to +60°C

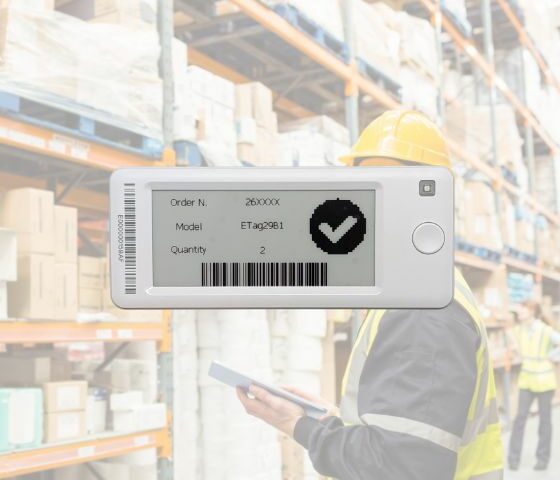

• e-paper tag with updateable display content
• Labeling, identification, dynamic information display
• bleenc® protocol with bidirectional communication
• Black/White display colors
• RGB LED and button
• Replaceable 2xCR2450 lithium coin batteries

Manufacturing: production order tracking, pick-to-light
Healthcare: medical equipment tracking and identification

Based on Nordic nRF52832 SoC (MCU and radio transceiver)
Frequency band: 2.402 to 2.480 GHz
TX power: -40, -20 to 4 dBm (with 4 dB steps)
RX sensitivity: -94 dBm
Antenna: integrated meandered planar inverted F-antenna (PIFA)

Power supply type: primary battery
Replaceable: yes
Type: 2x CR2450 (3V, lithium, total typical capacity 1200 mAh @ 25°C)
Operating life: 5 years (5 updates per day)

Sensors: call button
Interfaces: RGB LED; 2.9’’ e-paper display
Size: 103.5 x 43.2 x 12.6 mm
Weight: 38 gr
Protection: –
Flammability: UL 94 HB
Operating temperature: -20°C to +60°C
